Tools

OpenModelica Open Source Tools

omstructure — Arrows denote data and control flow

Advanced Interactive OpenModelica Compiler (OMC)

omc structure

Compiles Modelica code to C for Simulation.
Provides an API to query the loaded Modelica code.
Can be used from command line or interactively as a Corba object.

Interactive OpenModelica Shell (OMShell)

omshell

The purpose of OMShell is to provide an interactive environment for working with OMC.

OpenModelica Notebook (OMNotebook)

omnotebook

A literate programming notebook.
OMNotebook is a Mathematica style Notebook for Modelica.
The purpose of OMNotebook is to provide an advanced Modelica teaching tool.

DrControl Under OMNotebook

Dr Control

DrControl is an interactive course material in control theory based on the electronic book OMNotebook.
DrControl can be an alternative or complement to the traditional teaching method with lecturing and reading textbooks in control theory.

OpenModelica Connection Editor (OMEdit)

OMEdit

Graphical Connection Editor
Modelica annotation 3.1 is supported making the exchange of models to other tools easier
Qt C++ libraries used
Click the thumbnail for a screenshot

OMEdit Integrated with Electronic Notebooks and Interactive Simulation

Gives students the facility to export/import models between OMEdit and electronic notebooks.
Uses OpenModelica Interactive (OMI) subsystem to perform interactive simulation.
Online simulation makes the simulation respond in real-time to user input.
Click the thumbnail for a screenshot.

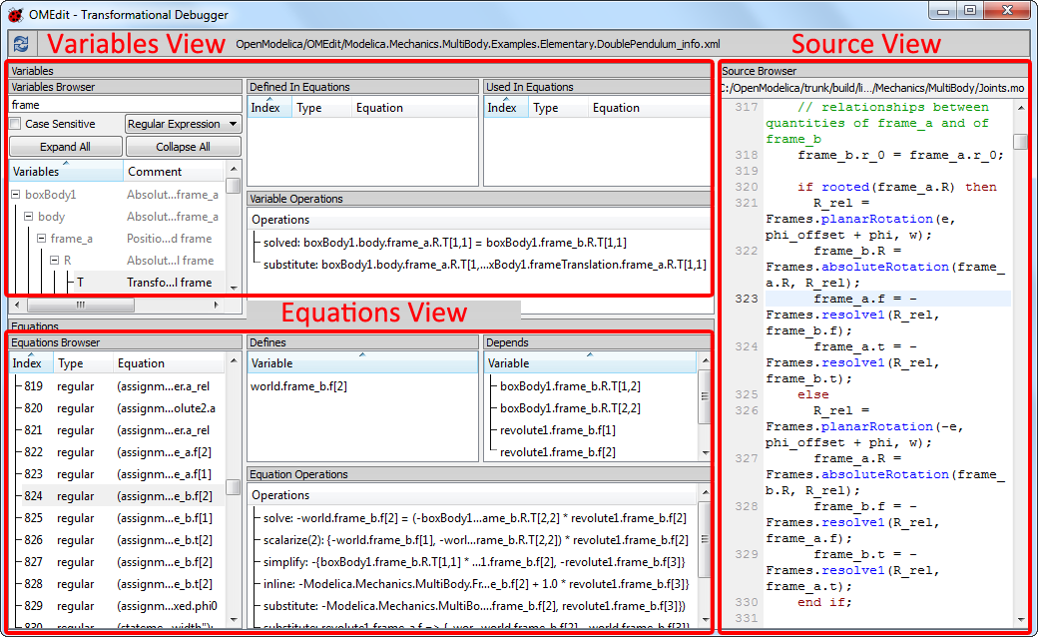

OpenModelica Equation Model Debugger

First ever model equations debugger for Modelica models
Mapping run-time errors to source model position
Showing equation trasformations of a model

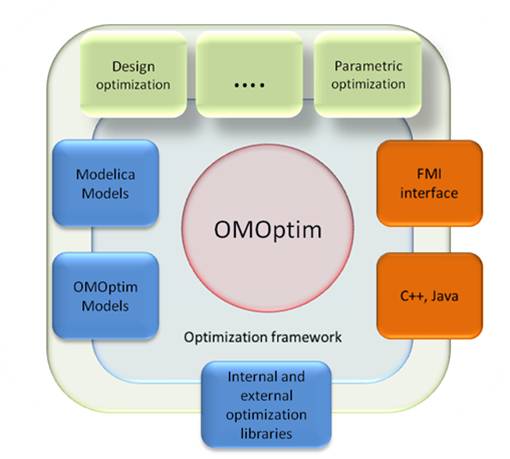

OMOptim

OMOptim facilitates optimization in engineering.
OMOptim extends the capabilities of OpenModelica towards design optimization.
It can be used to the increase energy efficiency of an industrial process.
Click the thumbnail for a screenshot.

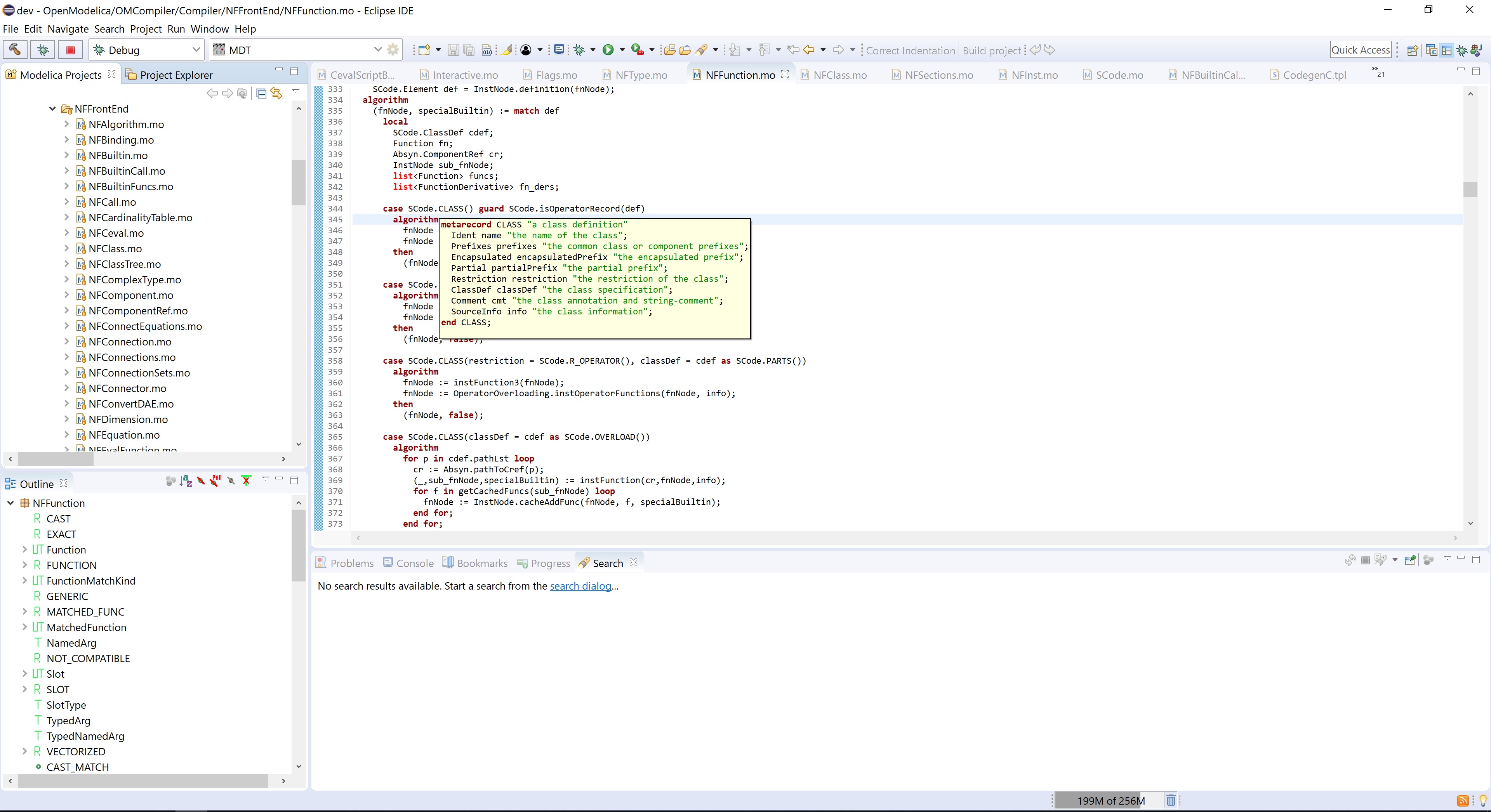

MDT Screenshot

Modelica Development Tooling (MDT)

MDT provides an advanced development environment for Modelica within the Eclipse platform.
Advanced textual environment for eclipse.

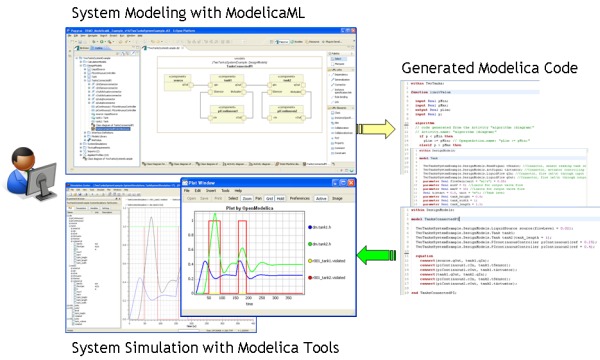

Modelica Modeling Language (ModelicaML)

Graphical modeling language for the description of time-continuous and time-discrete/event-based system dynamics .
Click the thumbnail for a screenshot.

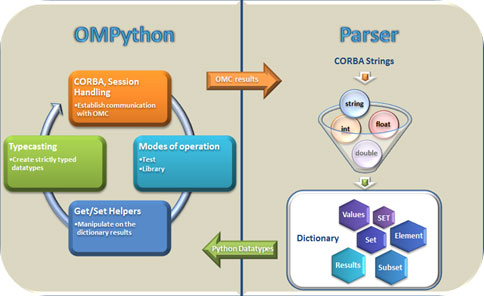

OpenModelica Python Interface (OMPython)

OMPython is a subsystem of the OpenModelica platform, enabling users to experience the modeling and simulation capabilities of OpenModelica within the Python environment.
Click the thumbnail for a screenshot.

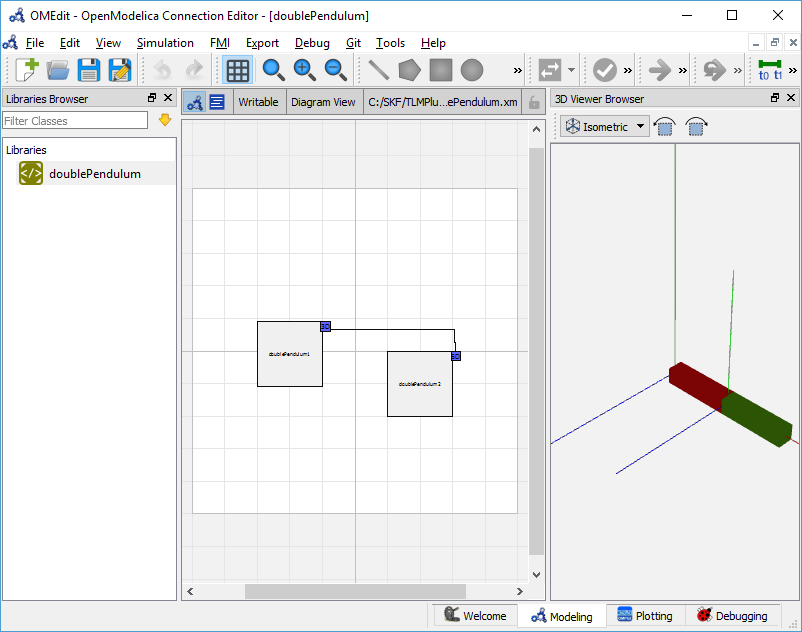

OMSimulator 1.0 - TLM based simulator

OpenModelica Simulator (OMSimulator)

A new (stand-alone) FMI- and TLM-based simulation tool OMSimulator.
First version for connected FMUs, TLM objects, Simulink models (via wrappers), Adams models (via wrappers), BEAST models (via wrappers), Modelica models. Regarding the FMI standard for model exchange and co-simulation , see FMI standard.
